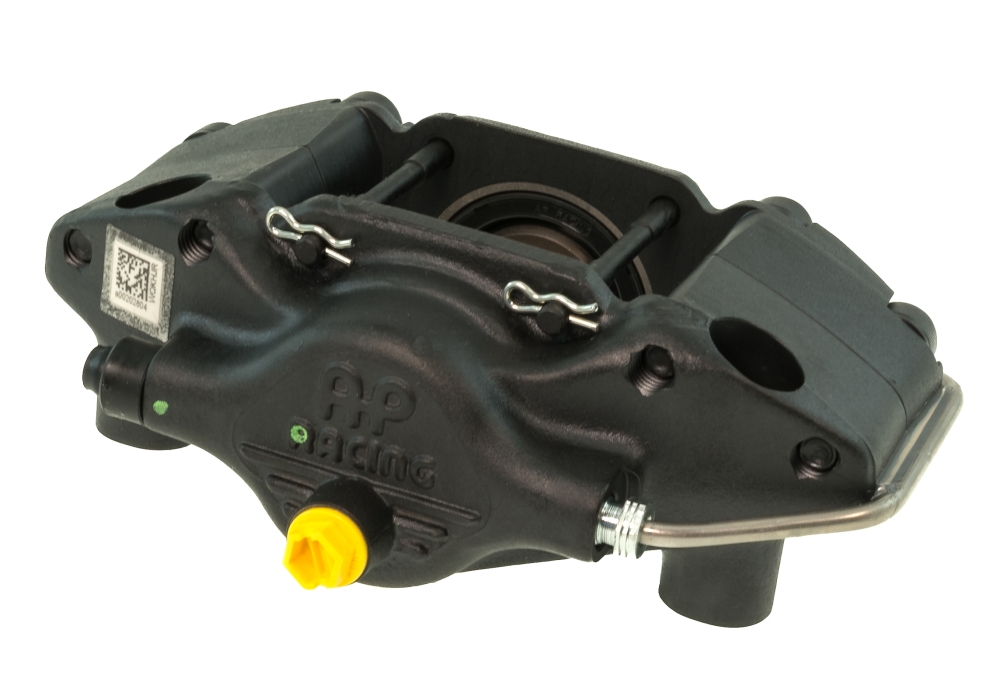

2 x AP 41.3mm Two Piston Brake Calipers

Be the first to write a review

They have a Twin 41.3mm Pistons which is a perfect combination with our front mounted EP Tuning 4 Pot Brake Calipers and other 4 pot calipers.

AP is synonymous with all forms of racing and are known throughout the world as the best.

We have chosen AP (as Lotus have in all their race cars) to be our preffered supplier for our upgraded brake packages.

They have a high quality aluminium alloy body with cast in protection for the bleeders and stainless steel cross over lines.

1/. The larger pistons within the caliper create more clamping load.
2/. The leverage on the outside of the disc is further outwards thus the clamping force is greater.
3/. The pads have a larger surface area than the original rear pads so they will last longer.
4/. Improves the rear braking bias on your car which is a great advantage as its lacking on all Elise derivatives.
5/. Lightweight, pressure cast aluminium alloy 2-piece body for better pedal feel than typical monoblock calipers
6/. Fixed radial mount for minimal caliper flex
7/. Hard anodized coating
8/. Internal dust seals for everyday use
9/. Anti-rattle clip to eliminate pad knock

For those running 200BHP+ and/or competitively racing, AP calipers and discs are an essential requirement.

Although EP and AP Two Piece discs have a larger outside diameter they are usually lighter than the original equipment steel discs you have on your car.

Please be aware that these have no internal handbrake mechanism

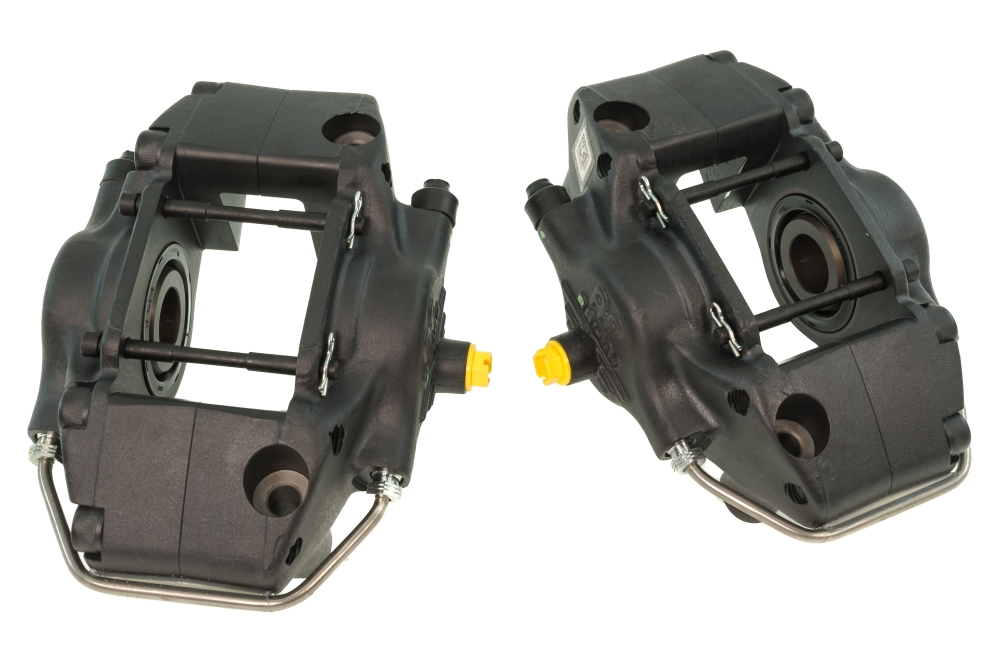

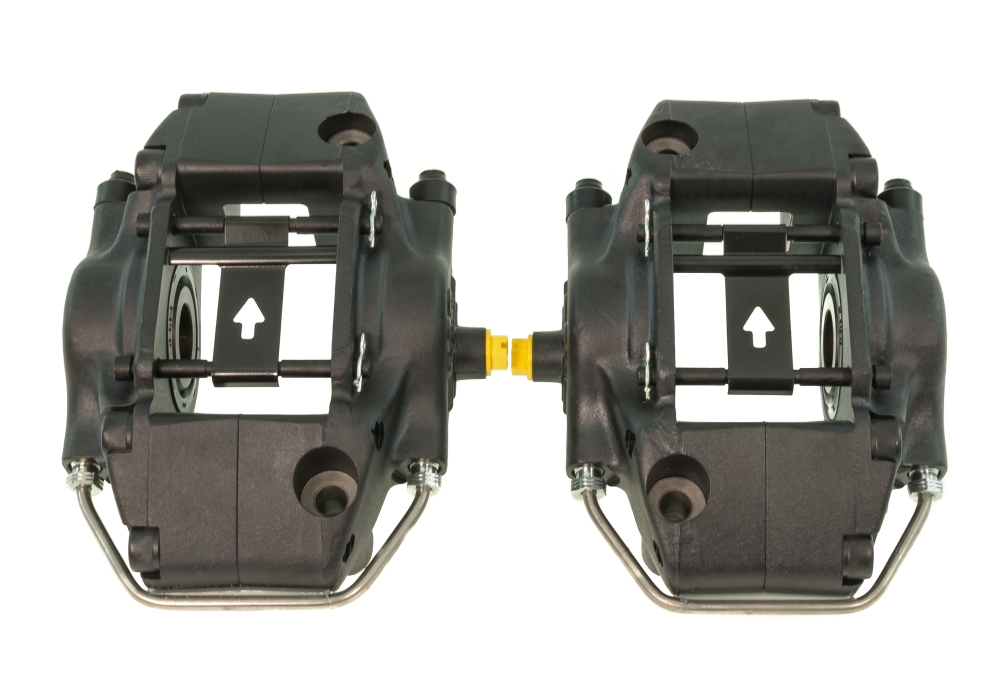

SUPPLIED AS COMPLETE PAIR ( 2 AP RACING CALIPERS).

These calipers are designed for a side entry brake hose, you can find our Goodridge Hoses (4-pot type) in the related products below.
