16 x Tapered Washer Silver OEM Wheel Bolts

Be the first to write a review

Sorry, this product is not available to buy online.

Get notified when this product is available:

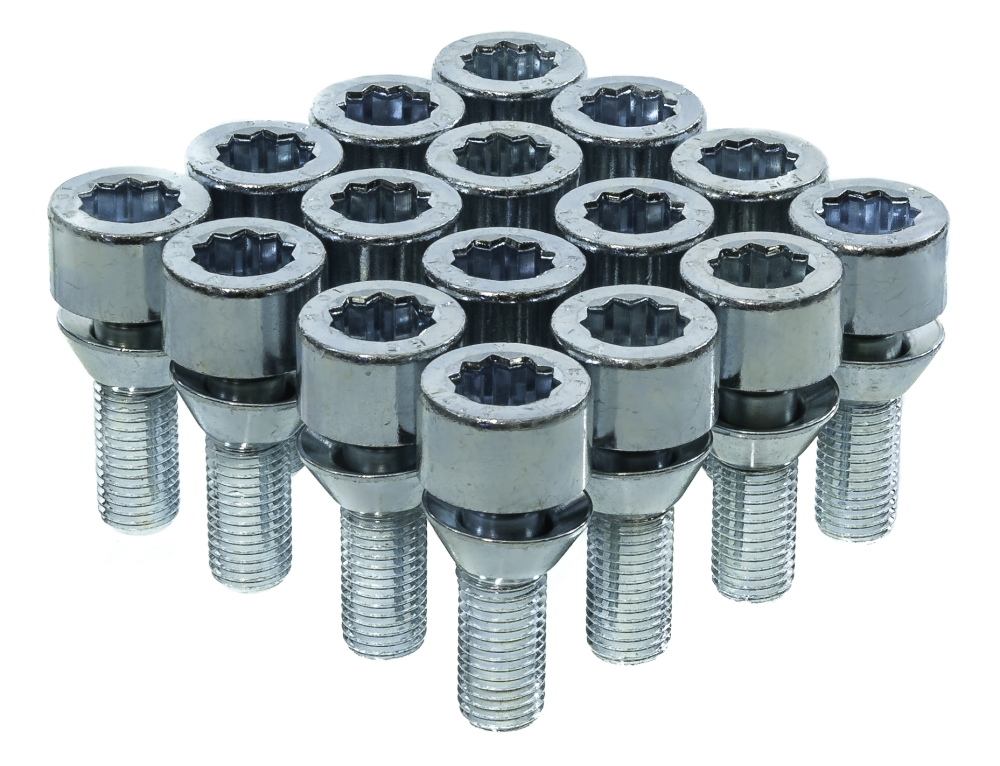

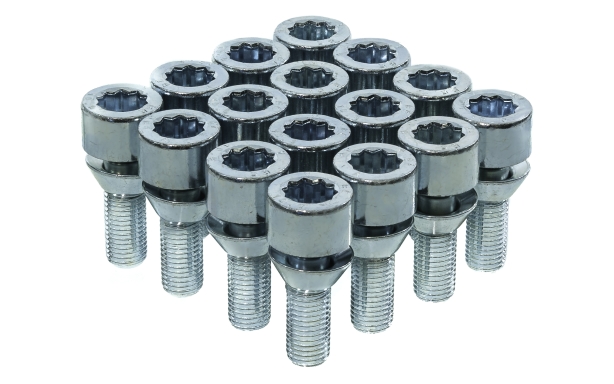

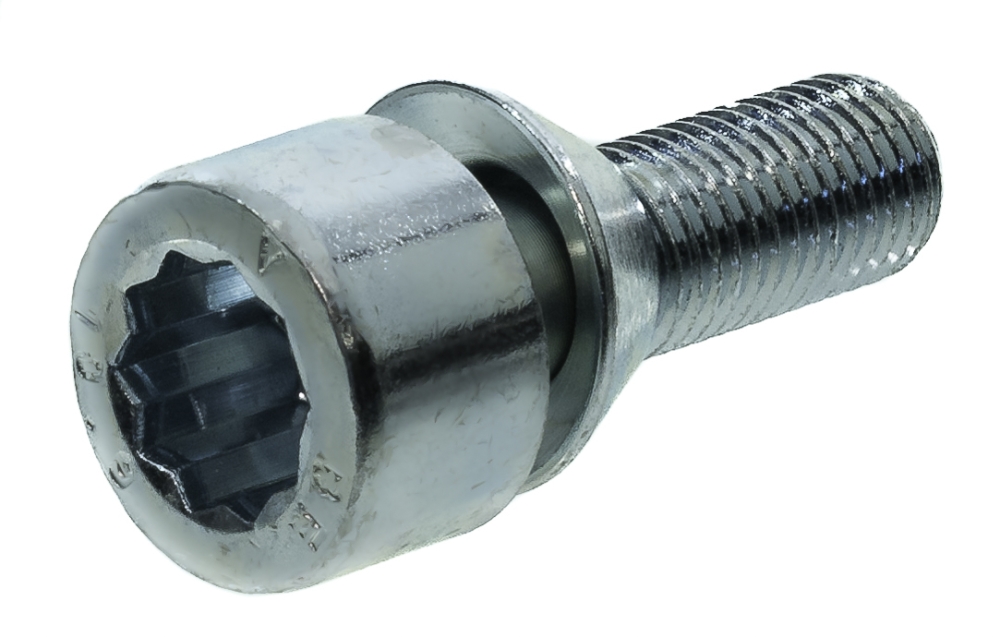

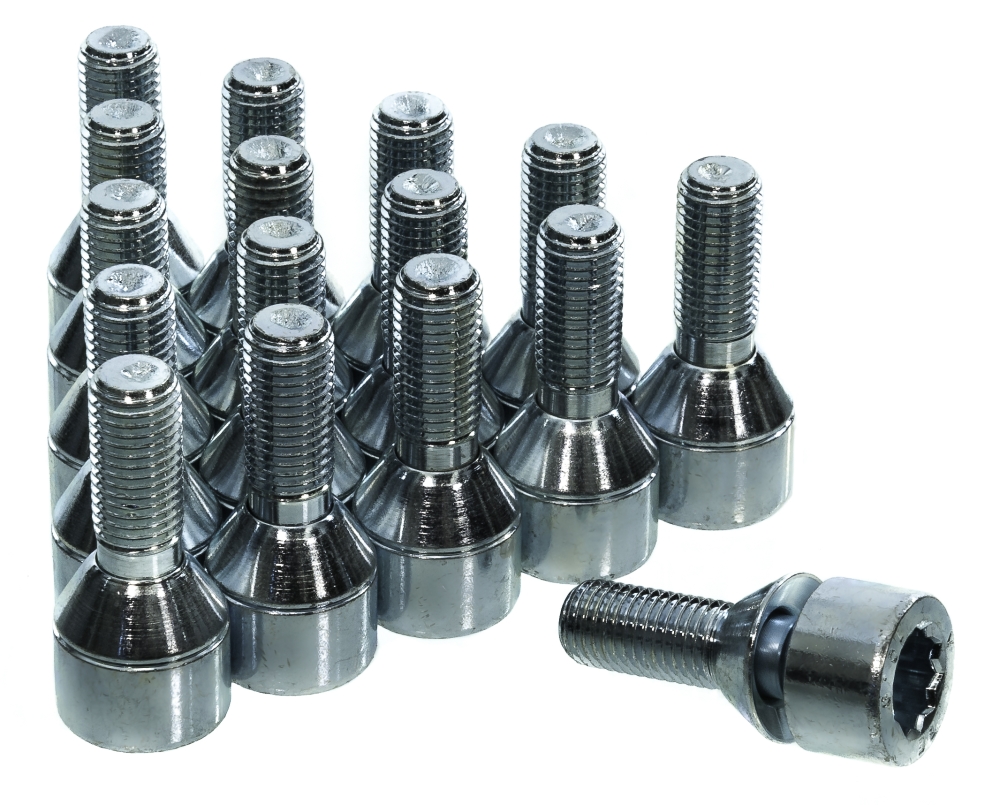

16 x Splined Star High Tensile Original Lotus wheel bolts 10.9 grade with 60 degree taper Static Conical Washer as used on the Evora and V6 Exige.

Very clever design in that the 60 degree tapered washer is static within the wheel hub and holds this stationary position whilst turning the wheel bolt head.

This alleviates the tendency to score the aluminium wheel hub and allows even torque to be set against the bolt reducing the risk of the bolt breaking or the wheel coming loose

Can be used on any Lotus wheel that has a 60 degree tapered seat.

Available in Bright Chrome finish

NEW BILLET STEEL SPLINE TOOL AVAILABLE IN RELATED PRODUCTS BELOW

Lotus part number for a single silver Star wheel bolt is A138G6012F

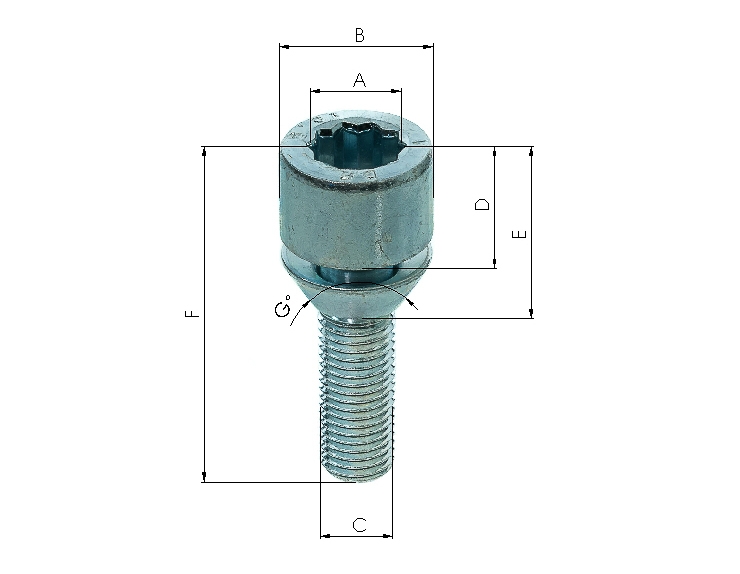

Dimensions
A Star Form
B 23.00mm
C 12.00mm x 1.5mm Pitch
D 14.00mm
E 23.00mm
F 51.00mm
G 60 Degree Taper
Thread Length 28.00mm
