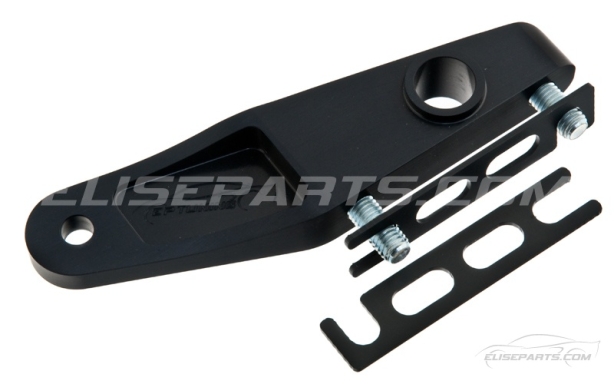

Steering Arms Kit for T45 Wishbones

Be the first to write a review

GT Race specification steering arms are only 1/3rd the weight of the original cast steel arms and achieve a great saving of un-sprung weight.

Beautifully crafted from lightweight yet strong aircraft specification certificated 7075 aluminium.

Black Hard anodised for the ultimate hardness and corrosion resistance.

Supplied with our special camber shims, high grade cap head bolts and two of the best quality rod ends available (easier to change and adjust than tapered track rod ends).

Designed for up to 2 degrees more negative camber than the original steering arms, supplied with stainless steel shims for fine tuning bump steer at whatever ride height required.

The arms are designed to be at the same angle as the wishbone pivot points even at low ride heights thus reducing bump steer.

Bump steer is the change in toe-in / camber of the road wheels caused when the arc of the steering rack arm differs to the arc of the wheel travel, i.e. when the wheel travels through its full bump and droop motion, the wheel will toe-in / out at different points of movement.

During this motion the wheels will tend to steer themselves and this is felt through the steering wheel as bump steer.

The Full Kit Comprises:

2 x lightweight steering arms.

2 x high quality rod ends with sleeves.

4 x conical washers.

4 x Specially designed stainless steel 1mm camber shims.

4 x Specially designed stainless steel 2mm camber shims.

6 x M10 cap head bolts.

2 x Aircraft specification 1/2" UNF K-Nuts.

2 x M10 Stainless steel washers.

2 x M10 grade 10 nyloc nuts.

2 x Stainless steel bearing adaptors.

4 x Stainless steel 12mm thick bearing caps.

2 x High tensile 1/2" UNF caphead bolts.
