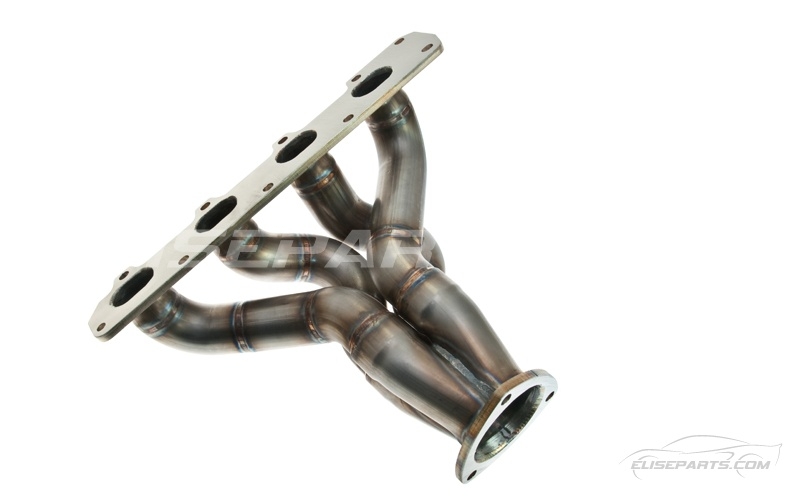

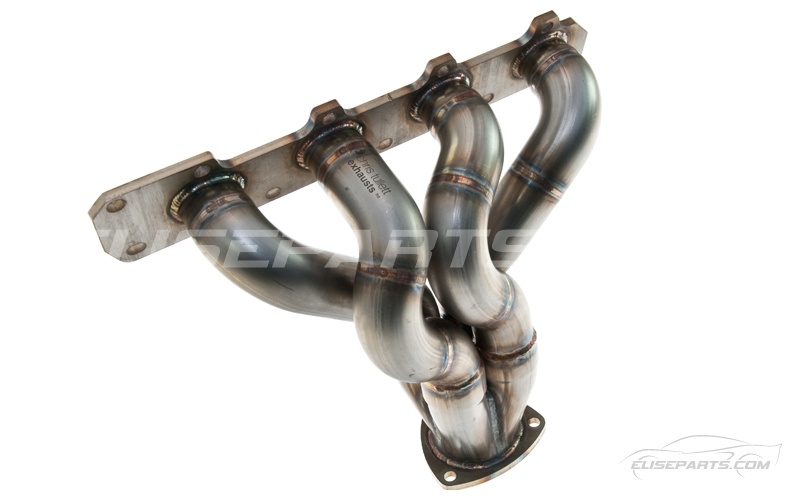

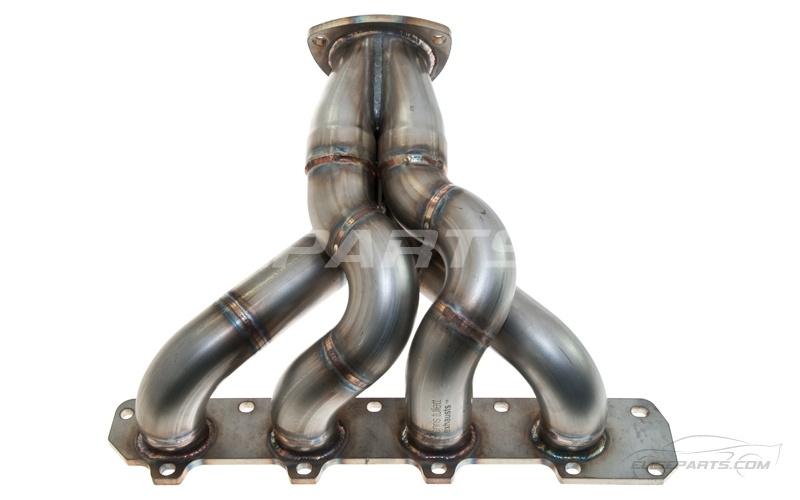

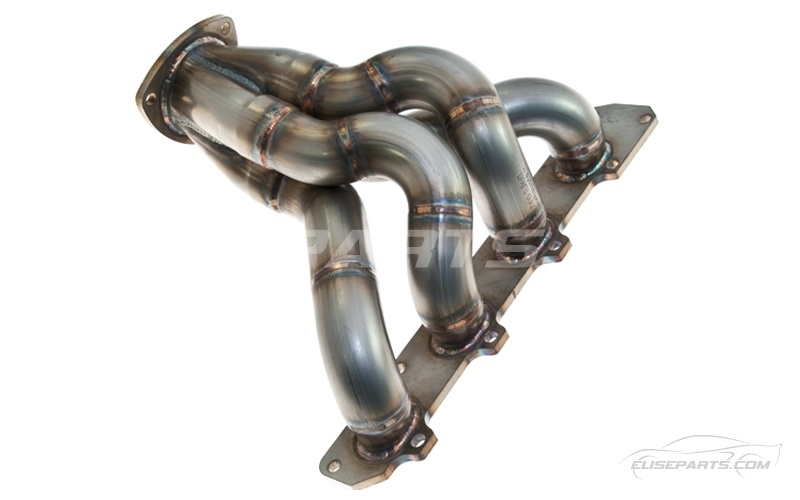

VX220 Manifold

Our Normally Aspirated Manifold is a carefully crafted component utilising many aspects of our experience within the racing community.

The header pipes are all equal length and come together in a race style merge collector resulting in improved gas flow and increased throttle response.

Fabricated from 304 Stainless Steel the manifold is strong and durable whilst also being lightweight. It has the added benefit of being fully TIG welded and back purged to increase the strength of the joints and to improve gas flow throughout the manifold.

It is a direct replacement for the standard item and uses the same fixings so will fit all direct replacement parts.

This component is rated for applications UP TO 270 BHP.

Our Supercharged manifold has been built with optimum flow being the main design criteria.

Due to the higher power outputs we have increased the header pipe diameter and incorporated a race style merge collector as well as making sure that the four header pipes are equal length.

With all these elements incorporated you will find that throttle response is improved and the scope for increased tuning is possible.

The complete manifold is fabricated using Stainless Steel 304 tube for strength and reliability.

Due to the increased pipe diameter and merge collector the original outlet flange position has been moved so this manifold will not fit a standard system.

This component is rated for applications OVER 270 BHP.
