HomeTrack + PerformanceRed Mega High Flow Induction System

Red Mega High Flow Induction System


Be the first to write a review

Red Mega High Flow Induction System Image
Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image Red Mega High Flow Induction System Image

£695.00 EX VAT

K Series Mega High Flow Induction System

Width 410mm x Height 160mm x Length 370mm

Elise Airbox and trumpet kit for high performance use

This product was developed on the Emerald rolling road by Dave Walker, Steve Butts and Bernard Scouse.

It was developed to improve the mid-range torque of the engine to increase acceleration out of corners and make the engine less "buzzy".  Due to the timing of the ram effect of the pulsations in the intake tract long trumpets give good power low down but restrict the top end, short trumpets have the opposite effect.

Many road cars and some F1 cars utilise this ram effect by having variable length intake systems to spread the effect over a wide rev range but not practical or economic to achieve without a huge budget.

By optimising the length of the trumpets on a bank of cylinders then gains could be had at the mid-range without compromising the top end significantly.
The result is that inner and outer cylinders can run different length trumpets depending on your power optimum
After 3 days of rolling road time we came up with the airbox and trumpet arrangement below.

The Elise Race kit comprises of:

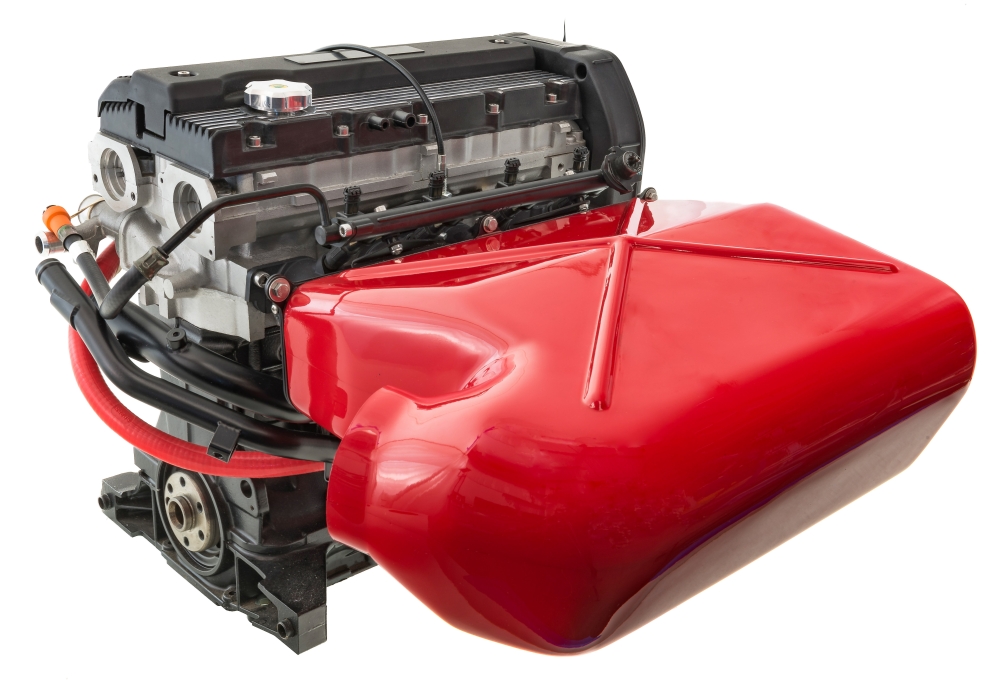

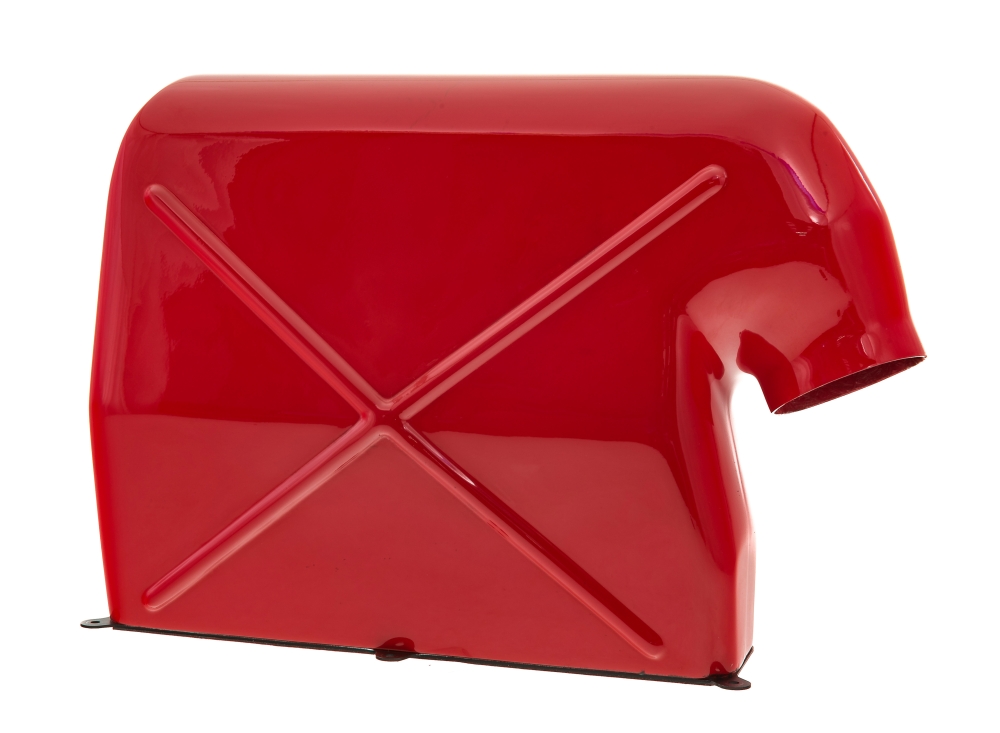

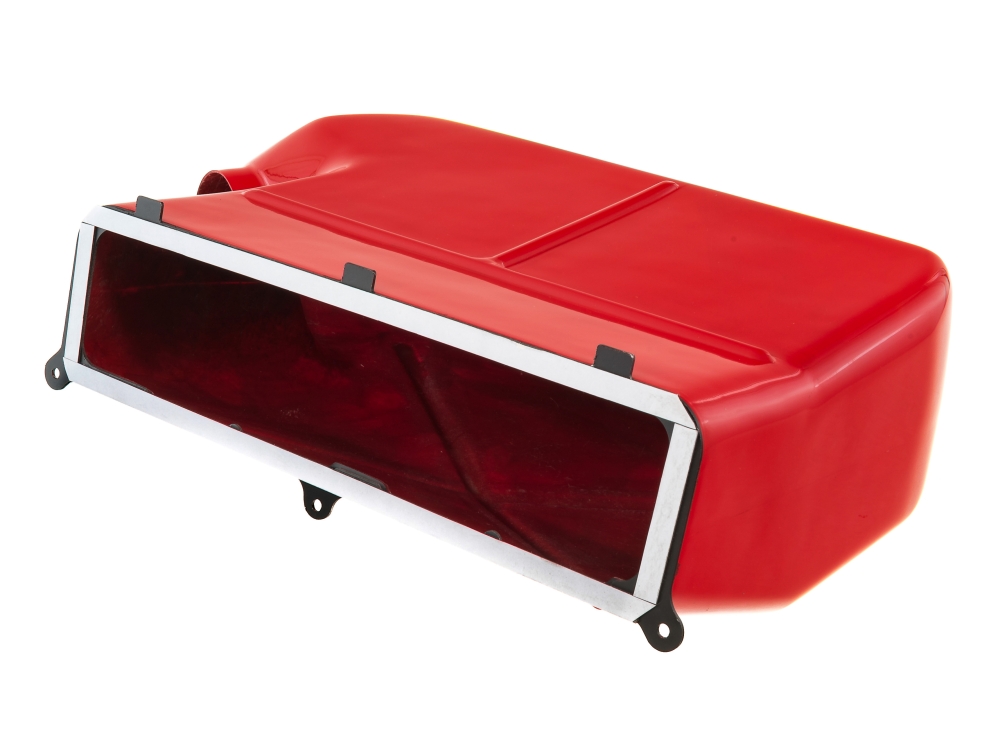

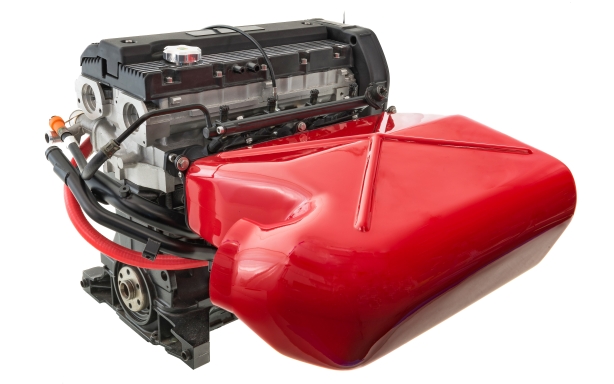

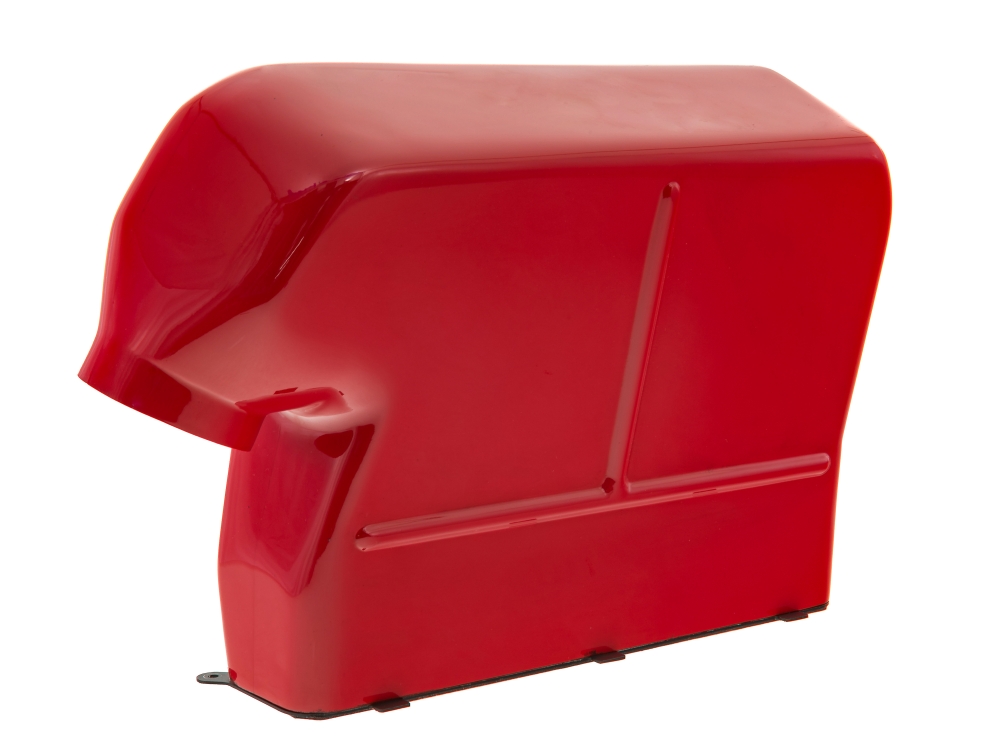

Airbox (Red or Black)

Choice of trumpets size

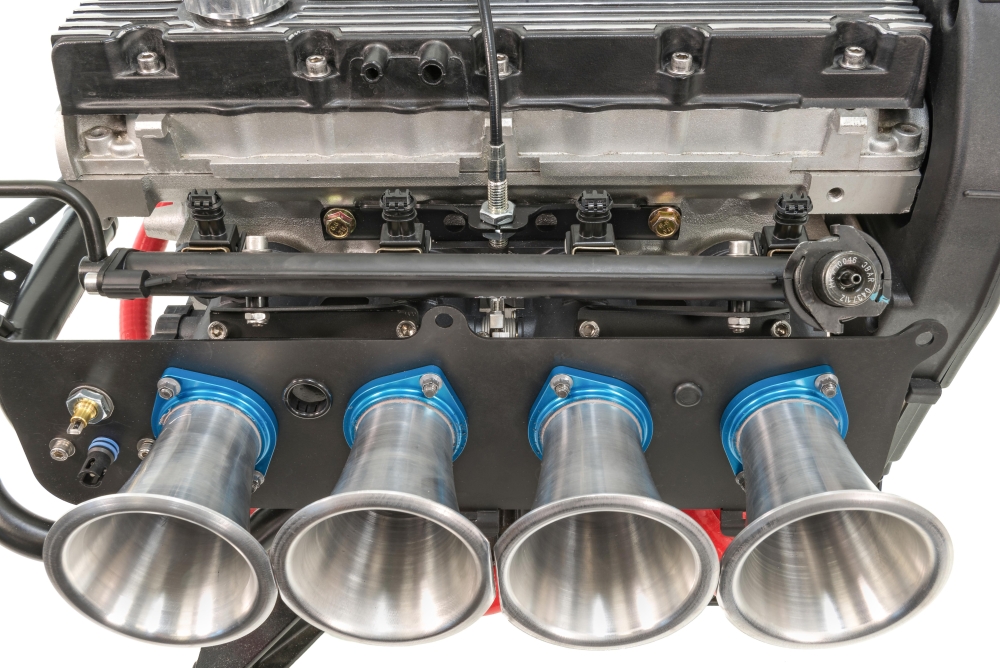

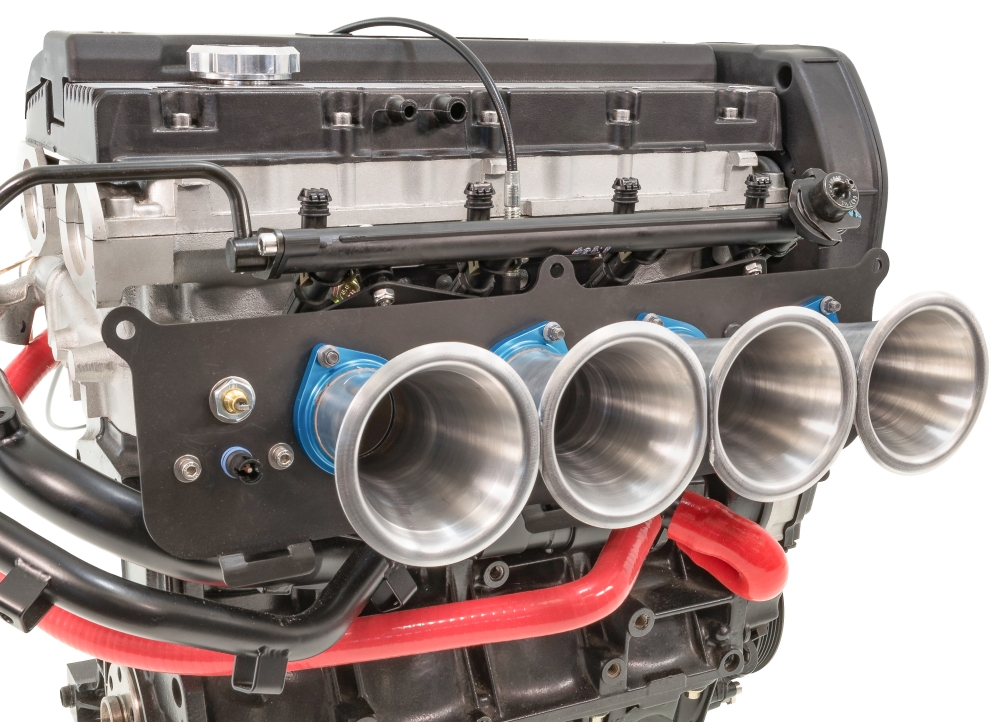

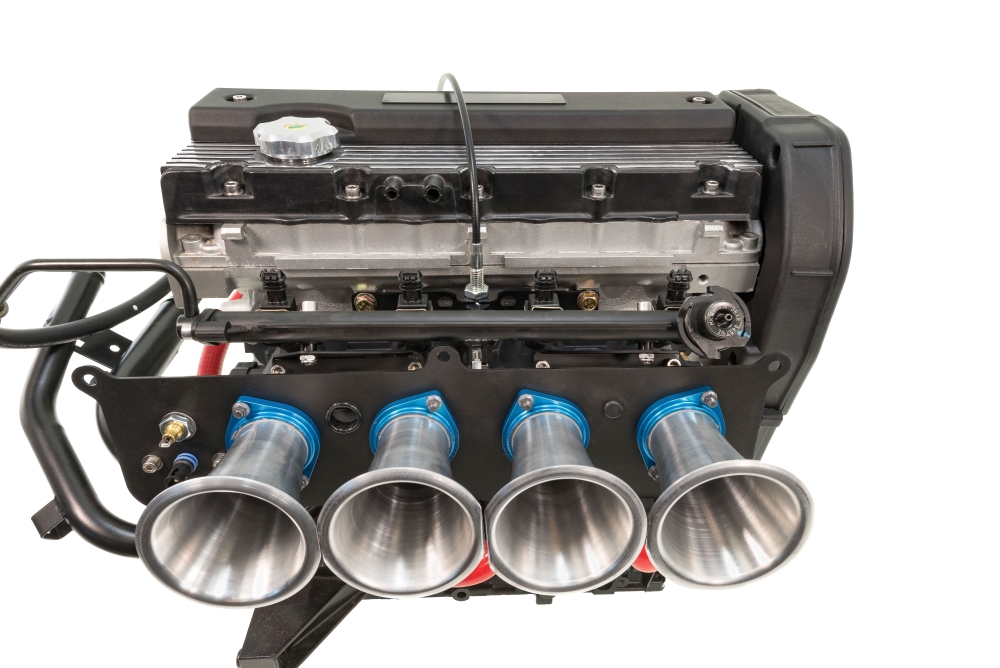

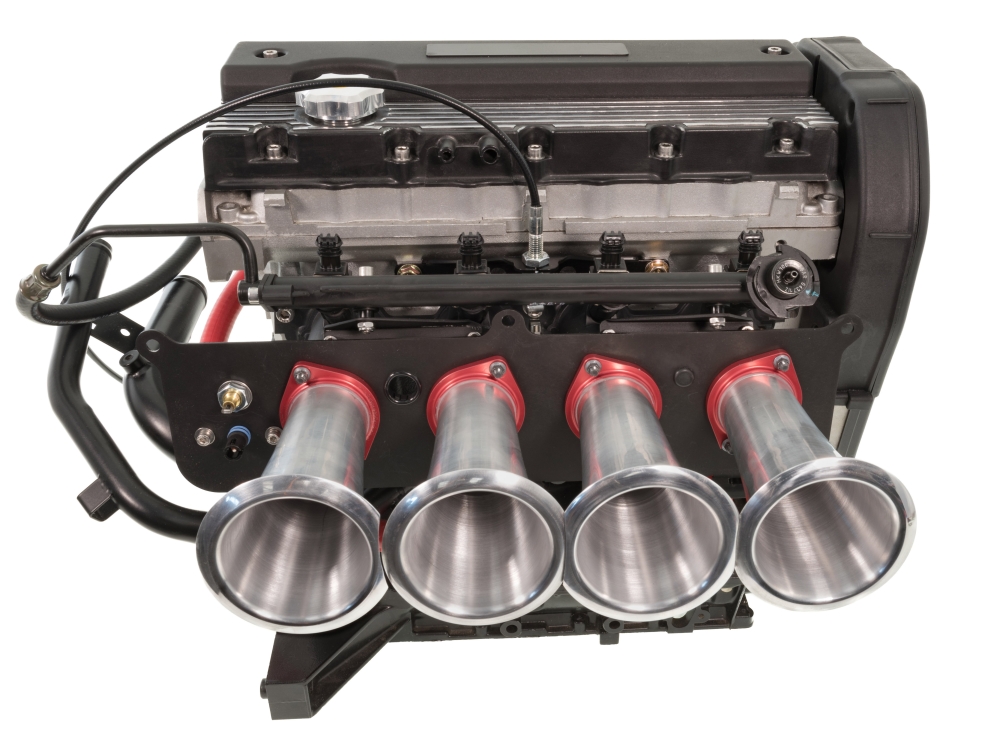

2 off 42 mm bore lightweight 150mm aluminium trumpets .

2 off 42 mm bore lightweight 90mm aluminium trumpets .

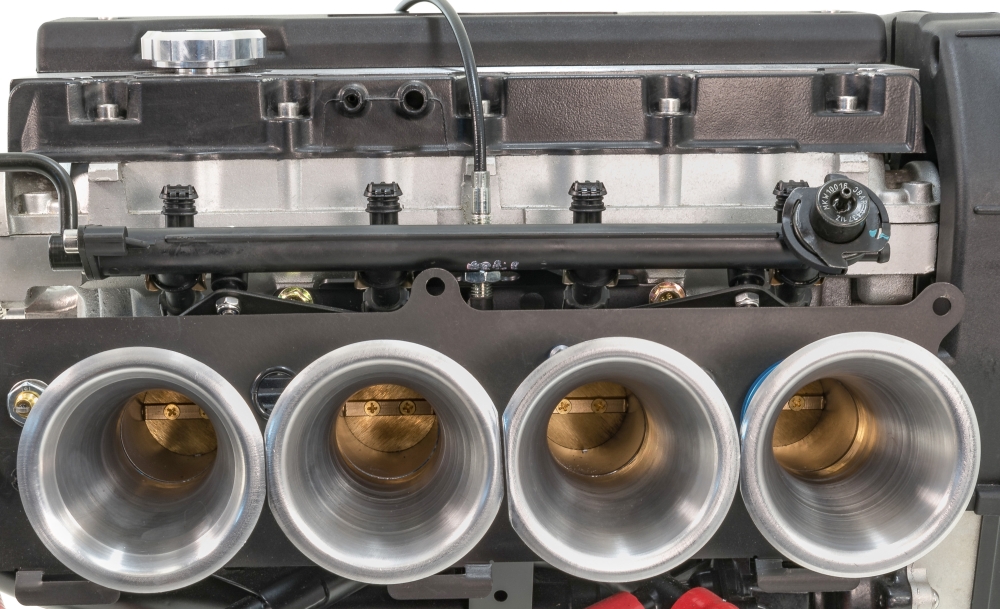

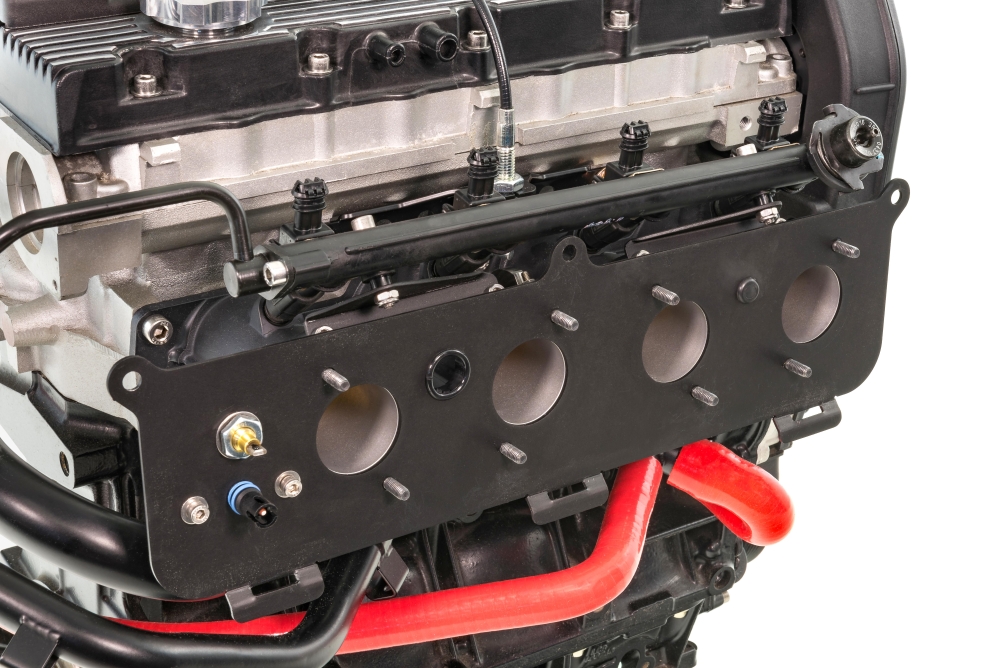

Aluminium backplate plus fixings for above, includes fuel rail mounting brackets for standard K series Fuel rail

Ramair Foam Air Filter (suitable, they say, for 300 BHP)

500 mm of 100 mm diameter flexible air duct

1 x 100 mm hose clip

Vacuum formed cover seal for the Side intake vents

Throttle cable bracket to take standard Elise throttle cable

All studs, nuts, bolts, washers etc. included to enable an easy fitment

The original air temperature sensor fits into the back-plate

There are also two alternative positions on the back-plate for a crankcase breather pipe connection

The boot / luggage area does require modification to install this kit

This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • LOTUS 340R
